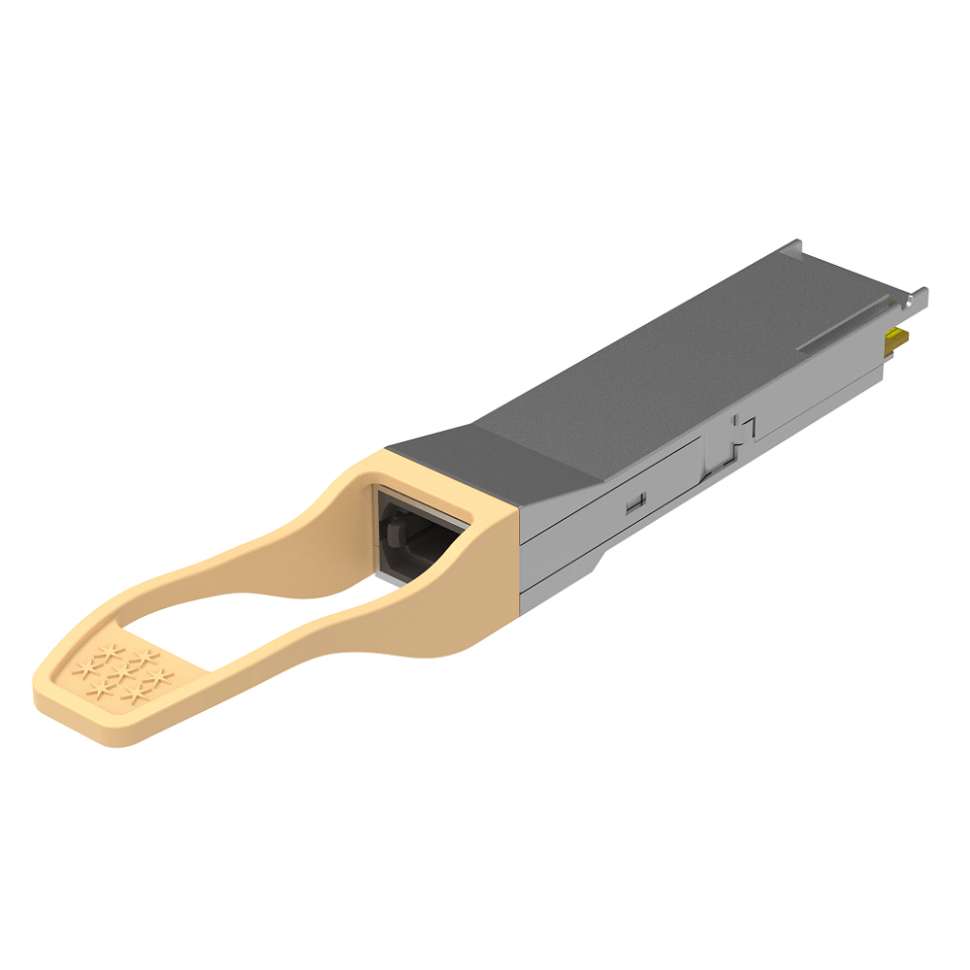

Оптический трансивер 100G QSFP28 SR4 850nm 100м

Features
 4 channels full-duplex transceiver modules
 Transmission data rate up to 25Gbps per channel
 Support 40GE and 56G FDR data rate
 4 channels 850nm VCSEL array
 4 channels PIN photo detector array
 Internal CDR circuits on both receiver and transmitter
channels
 Support CDR bypass
 Low power consumption < 2.5W
 Hot-pluggable QSFP28 form-factor
 Maximum link length of 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
 Single MPO connector receptacle
 Operating case temperature 0°C to +70°C
 3.3V power supply voltage
 RoHS-6 compliant (lead free)
Applications
 IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4
 InfiniBand FDR/EDR
